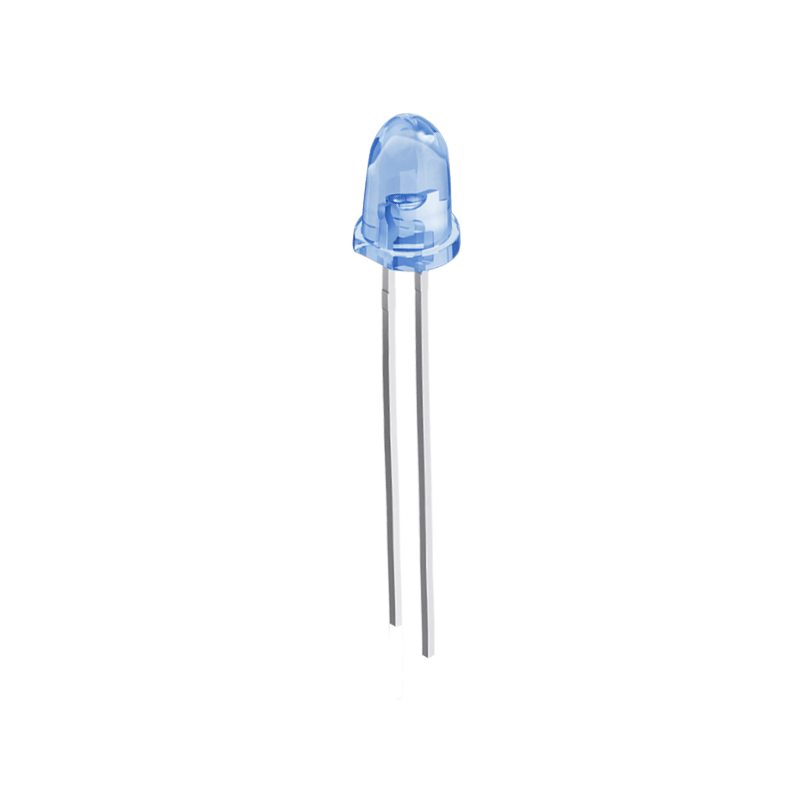

Lamp-IR
红外发射管可以将电能直接转换成红外光，其利用半导体结晶材料形成PN结，因PN结的杂质浓度、结构等变化，可以产生不同波长的红外光。红外发射器件规格齐全，参数众多，根据不同的应用特点，提供不同的产品。可综合考虑发射主波长、发光强度、发光角度、封装形式等因素，结合产品的性价比，选择合适的产品。
基本参数
-
高可靠性
-
高辐射强度
-
峰值波长 λp=940nm
-
2.54mm 引脚间距
-
低正向电压
应用领域
-
自由空气传输系统
-
高功率需求的红外遥控装置
-
烟雾探测器
-
红外应用系统
更多产品
|
产品 |
规格书 |
VF |
尺寸(mm) |
λp (mm) |
视图角度 |
le/u最小值(m) |
类型(mW/sr) |
|
| VF最小值 | VF最大值 | |||||||
 IR3052-40 |
 |
1.2 | 1.5 | 3.0 | 940 | 40 | 7.8 | 12.0 |
 IR3052C-40 |
|
1.2 | 1.5 | 3.0 | 940 | 40 | 4.0 | 7.8 |
| IR3052C-50 |
|
1.2 | 1.5 | 3.0 | 940 | 50 | 2.8 | 4.0 |
| IR3052-50 |
|
1.2 | 1.5 | 3.0 | 940 | 50 | 2.8 | 4.0 |
 IR3050C-35-WB |
|
1.2 | 1.5 | 3.0 | 940 | 35 | 4.0 | 7.8 |
 IR2945C-40-WB |
|
1.2 | 1.5 | 2.9 | 940 | 40 | 4.0 | 5.6 |
 IR2945-40-WB |
|
1.2 | 1.5 | 2.9 | 940 | 40 | 4.0 | 5.6 |
 IR4760-30 |
|
1.2 | 1.5 | 4.7 | 940 | 30 | 4.0 | 6.4 |
| IR4760-60 |
|
1.2 | 1.5 | 4.7 | 940 | 60 | 2.5 | 3.5 |
 IR5086-20 |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 7.8 | 20 |
 IR5086C-20 |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 7.8 | 20 |
| IR5086C-40 |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 7.8 | 10 |
| IR5086C-30 |
|
1.2 | 1.5 | 5.0 | 940 | 30 | 7.8 | 15 |
| IR5086-40 |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 7.8 | 10 |
| IR5086-30 |
|
1.2 | 1.5 | 5.0 | 940 | 30 | 7.8 | 15 |
 IR5086-S18 |
|
1.2 | 1.5 | 5.0 | 940 | 18 | 21 | 34 |
 IR5086C-S20 |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 15 | 20 |
| IR5086-S20 |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 15 | 20 |
 IR5086C-M25 |
|
1.2 | 1.5 | 5.0 | 940 | 25 | 4.0 | 7.8 |
 IR3246C-35 |
|
1.2 | 1.5 | 3.2 | 940 | 35 | 4.0 | 7.8 |
| IR4055C-M45 |
|
1.1 | 1.2 | 4.0 | 940 | 45 | 2.5 | 3.5 |
 IR5182C-50 |
|
1.2 | 1.5 | 5.1 | 940 | 50 | 5.6 | 8.0 |
| IR5082C-40 |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 4.0 | 7.8 |
 IR2945-40 |
|
1.2 | 1.5 | 2.9 | 940 | 40 | 4.0 | 7.8 |
| IR5086C-27 |
|
1.2 | 1.5 | 5.0 | 940 | 27 | 7.8 | 11 |
| IR204-40 |
|
1.2 | 1.5 | 3.0 | 940 | 40 | 7.8 | 12 |
| IR204-A |
|
1.2 | 1.5 | 3.0 | 940 | 40 | 4.0 | 7.8 |
| IR204-A-L |
|
1.2 | 1.5 | 3.0 | 940 | 40 | 4.0 | 7.8 |
| IR204C-A |
|
1.2 | 1.5 | 3.0 | 940 | 40 | 4.0 | 7.8 |
| IR204C-A-L |
|
1.2 | 1.5 | 3.0 | 940 | 40 | 4.0 | 7.8 |
| IR204C/H16/L10 |
|
1.2 | 1.5 | 3.0 | 940 | 50 | 2.8 | 4.0 |
| IR204C/H60 |
|
1.2 | 1.5 | 3.0 | 940 | 50 | 4.0 | 7.0 |
| IR204C/L318 |
|
1.2 | 1.5 | 3.0 | 940 | 40 | 4.0 | 8.5 |
| IR204/H16/L10 |
|
1.2 | 1.5 | 3.0 | 940 | 50 | 2.8 | 4.0 |
| IR204/H60 |
|
1.2 | 1.5 | 3.0 | 940 | 50 | 4.0 | 7.0 |
| IR234C |
|
1.2 | 1.5 | 3.0 | 940 | 35 | 4.0 | 7.8 |
| IR264C |
|
1.2 | 1.5 | 2.9 | 940 | 40 | 4.0 | 5.6 |
| IR264 |
|
1.2 | 1.5 | 2.9 | 940 | 40 | 4.0 | 5.6 |
|
|
|
1.2 | 1.5 | 4.7 | 940 | 30 | 4.0 | 6.4 |
| IR323/H0-A |
|
1.2 | 1.5 | 4.7 | 940 | 60 | 2.5 | 3.5 |
| IR333 |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 7.8 | 20 |
| IR333-A |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 7.8 | 20 |
| IR333C-A |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 7.8 | 20 |
| IR333C |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 7.8 | 20 |
| IR333C/H0-A |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 7.8 | 10 |
| IR333C/H0 |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 5.6 | 7.8 |
| IR333C/H0/L10 |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 7.8 | 10 |
| IR333C/H2 |
|
1.2 | 1.5 | 5.0 | 940 | 30 | 7.8 | 15 |
| IR333/H0-A |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 7.8 | 10 |
| IR333/H0 |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 5.6 | 7.8 |
| IR333/H0/L10 |
|
1.2 | 1.5 | 5.0 | 940 | 40 | 11 | 12 |
| IR333/H2 |
|
1.2 | 1.5 | 5.0 | 940 | 30 | 7.8 | 15 |
| IR383-41 |
|
1.2 | 1.5 | 5.0 | 940 | 18 | 21 | 34 |
| IR383C |
|
1.2 | 1.5 | 5.0 | 940 | 20 | 15 | 20 |
|
|
|
1.2 | 1.5 | 5.0 | 940 | 20 | 15 | 20 |
|
|
|
1.2 | 1.5 | 5.0 | 940 | 25 | 4.0 | 7.8 |
| IR2424-3C |
|
1.2 | 1.5 | 3.0 | 940 | 35 | 4.0 | 7.8 |
|
|
|
1.2 | 1.5 | 4.0 | 940 | 45 | 2.5 | 3.5 |
| IR7373C |
|
1.2 | 1.5 | 5.1 | 940 | 50 | 5.6 | 8.0 |
|
|
|
1.2 | 1.5 | 5.0 | 940 | 40 | 4.0 | 7.8 |
| IR8294 |
|
1.2 | 1.5 | 2.9 | 940 | 40 | 4.0 | 7.8 |
|
|
|
1.2 | 1.3 | 5.0 | 940 | 27 | 7.8 | 11 |
